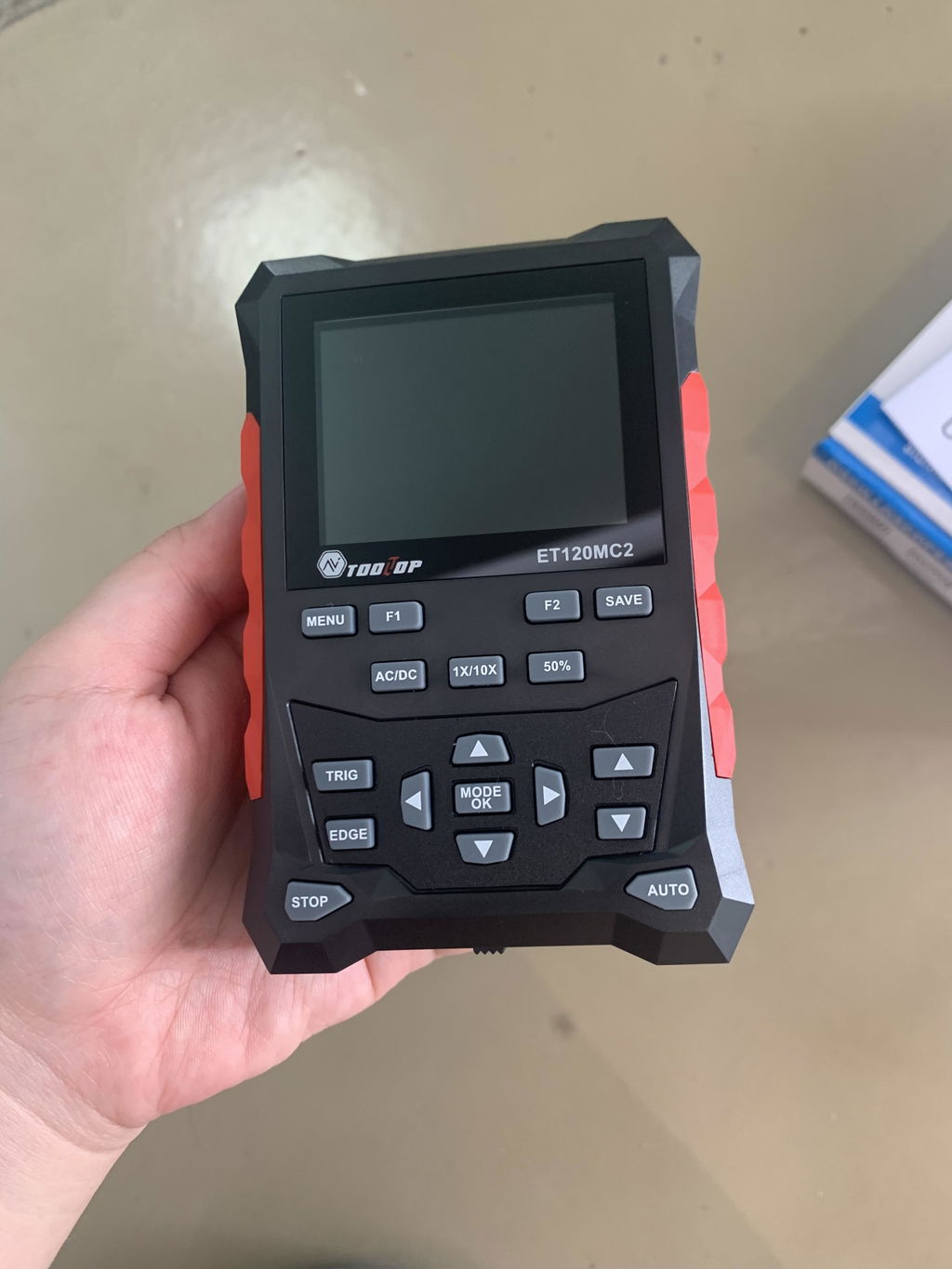

TOOLTOP ET120MC2 120MHz Portable Smart Oscilloscope Dual Channel lithium battery 500MSa/S Oscilloscope Data Storage For Home Appliance Repair Inspection, Car Repair

Descriptions:

This product is ideal for your on-site measurements. Suitable for home appliance inspection, automobile diagnosis, scientific research,education, product development and power testing,etc.

Features:

Dual-channel oscilloscope, 120MHZ single channel, 40MHz dual-channel , 500MSpS sampling rate

3 waveform scanning modes (automatic, single, normal)

Waveforms automatically adapt to the screen with one click AUTO, no need to adjust parameters

Waveform parameters such as time base, amplitude, trigger slope, etc. can be set by yourself.

Signal source : sine wave, triangle wave and square wave, output amplitude, frequency and square wave duty cycle.

Can store 2500 waveforms, supports thumbnail browsing, waveform deletion

Built-in lithium battery, rechargeable

Compact size, light weight of about 187 grams, easy to carry

320*240 high-definition color LCD display, clear and accurate waveforms

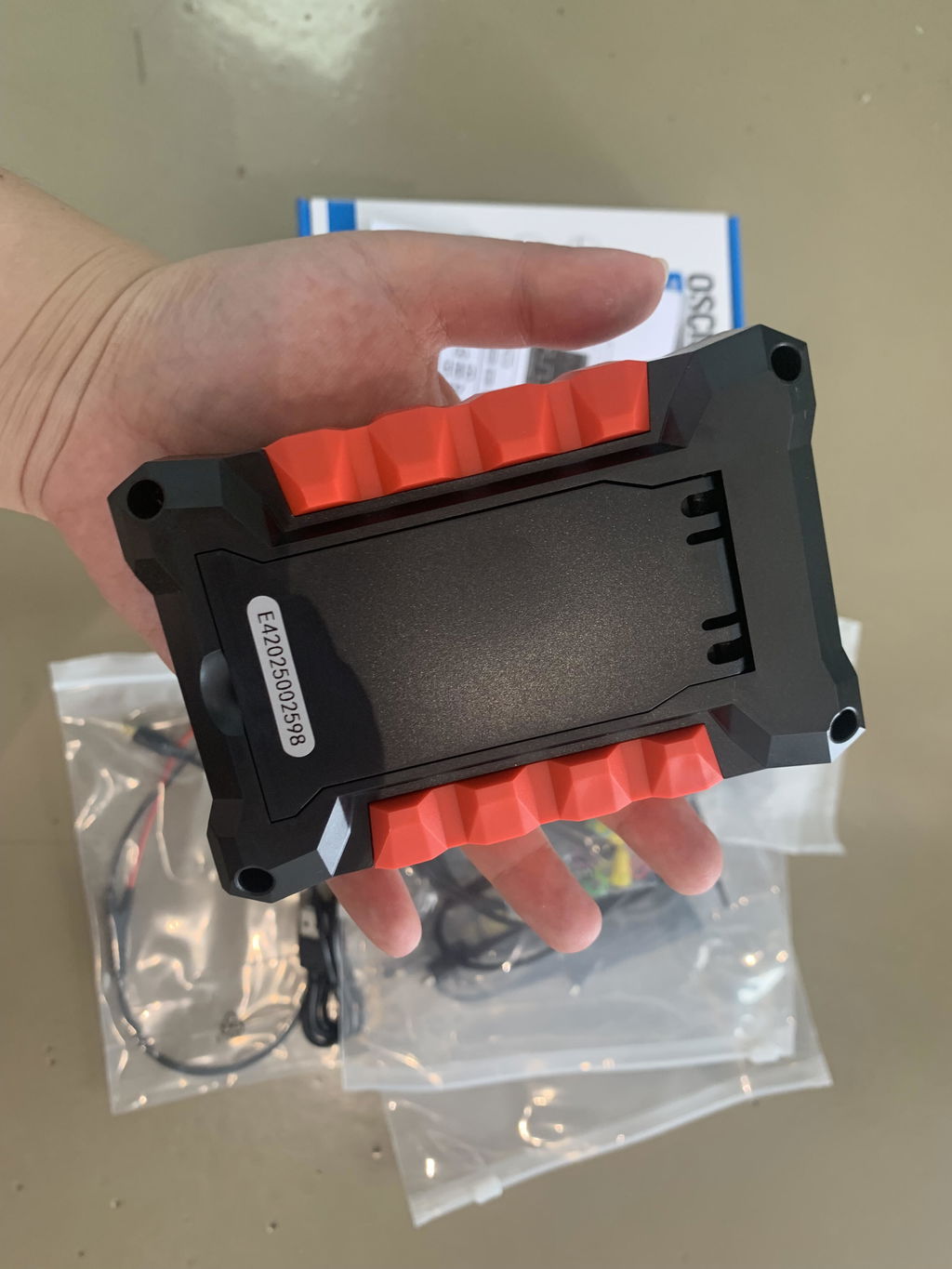

Silicone protective covers on both sides of the fuselage, anti-slip and anti-fall, comfortable to hold

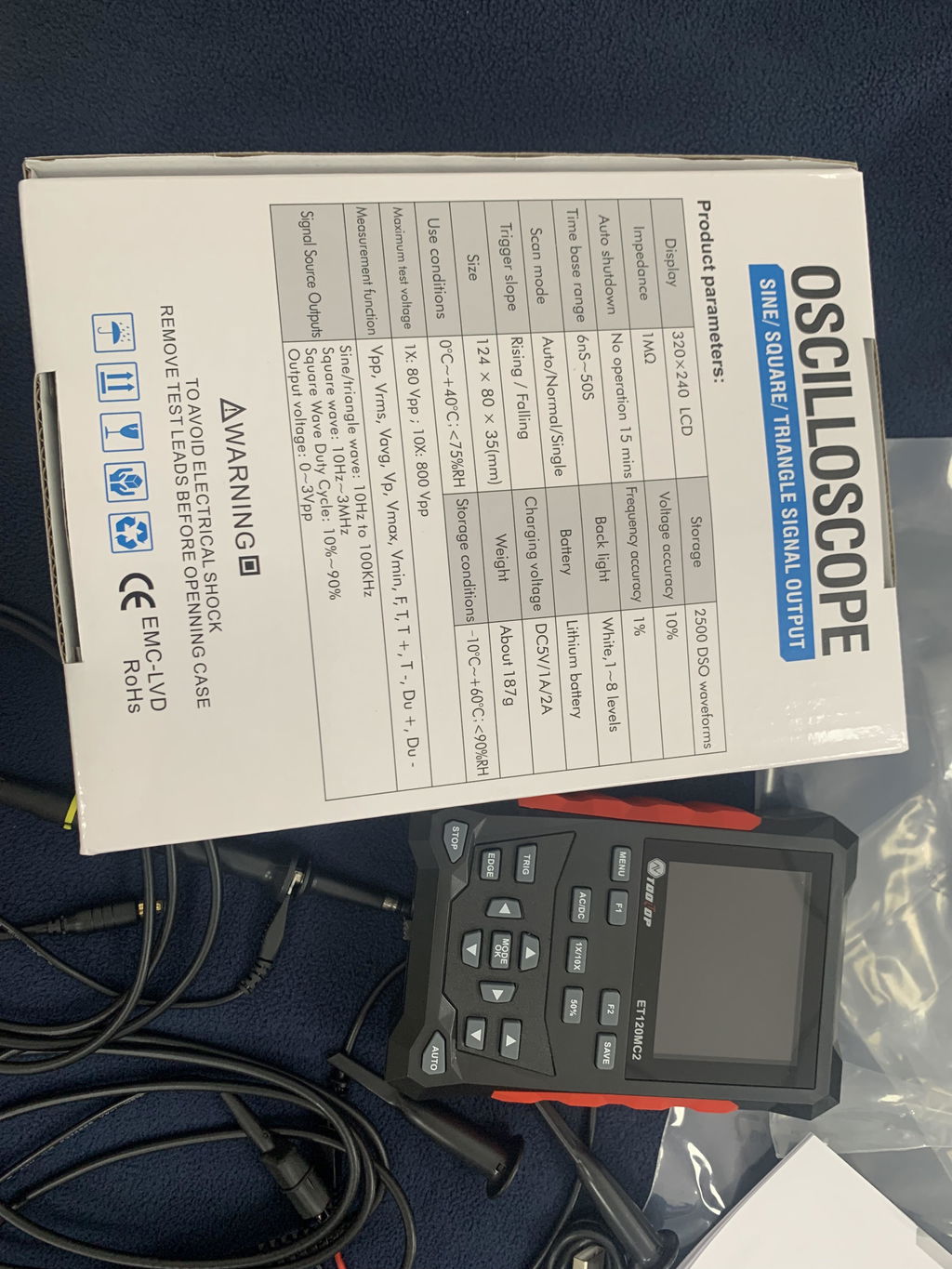

Specifications:

oscilloscope

Waveform bandwidth:120MHz

Channel quantity: 2

Max test voltage: 1X: 80Vpp 10X: 800Vpp

Storage Depth: 12.8div

Vertical Sensitivity:50mV~100V

Trigger Mode: Auto/Normal/Single

Save: 2500 DSO waveforms

Maximum sampling rate:500MSa/S Software equivalent max sampling rate 500MSa/S

Auto configuration: Automatically set time base and vertical sensitivity

Automatic measurement function: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T +, T-, Du +, Du

Time base range:6ns~50S

Trigger slope: Rising / Falling

Rising time:<3nS

Coupling method: DC/AC

Voltage accuracy: 10%

Frequency accuracy:1%

Input impedance:1MΩ

Signal source output:

Sine wave/triangular wave: 10Hz to 100KHZ

Square wave: 10Hz~3MHz

Square wave duty cycle: 10%~90%

Output voltage: 0-3Vpp

Other parameter

Screen resolution:320*240

Display: 2.4 Inches TFT SCREEN

Display area: 50mm x 40mm

Back light: White, 8 levels of brightness

Battery: Lithium battery

Standby time: About 4 hours

Charging: DC5V/1A/2A

Auto shutdown: No operation for 15 mins

Size: 124x80x35(mm)

Weight: About 187g

Use conditions: 0C~+40C;<75%RH

Save conditions: -10C~+60C;<90%RH

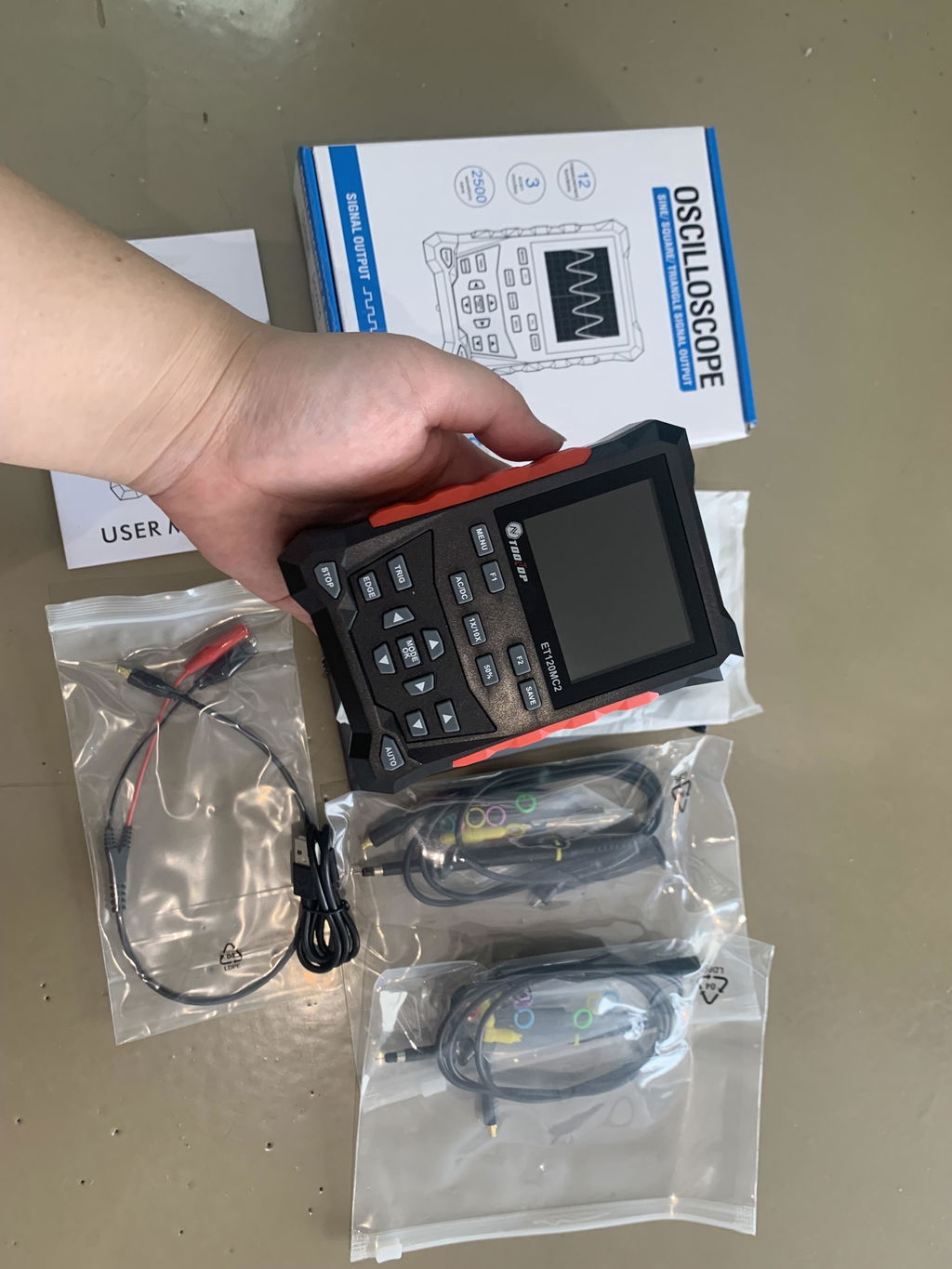

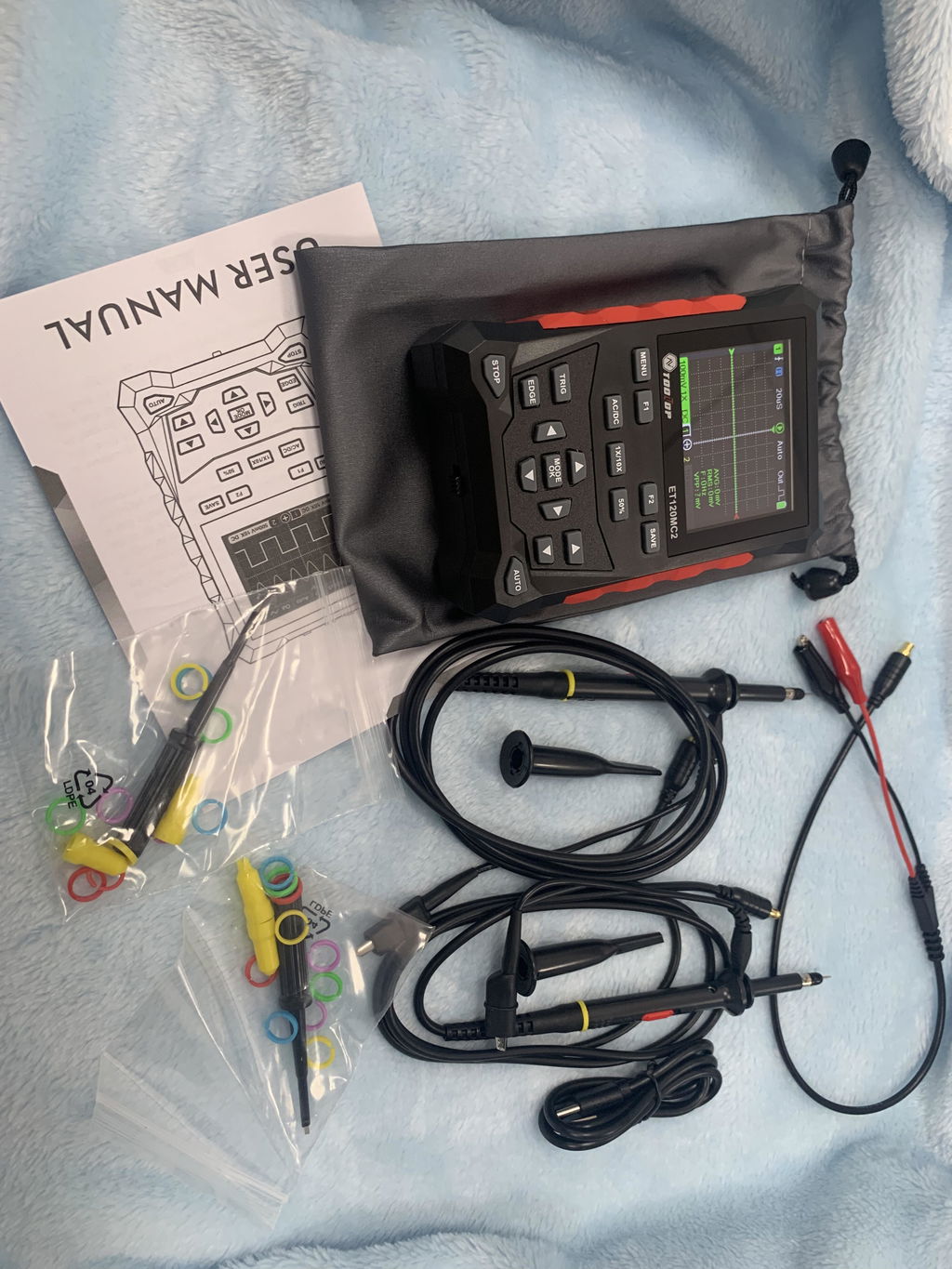

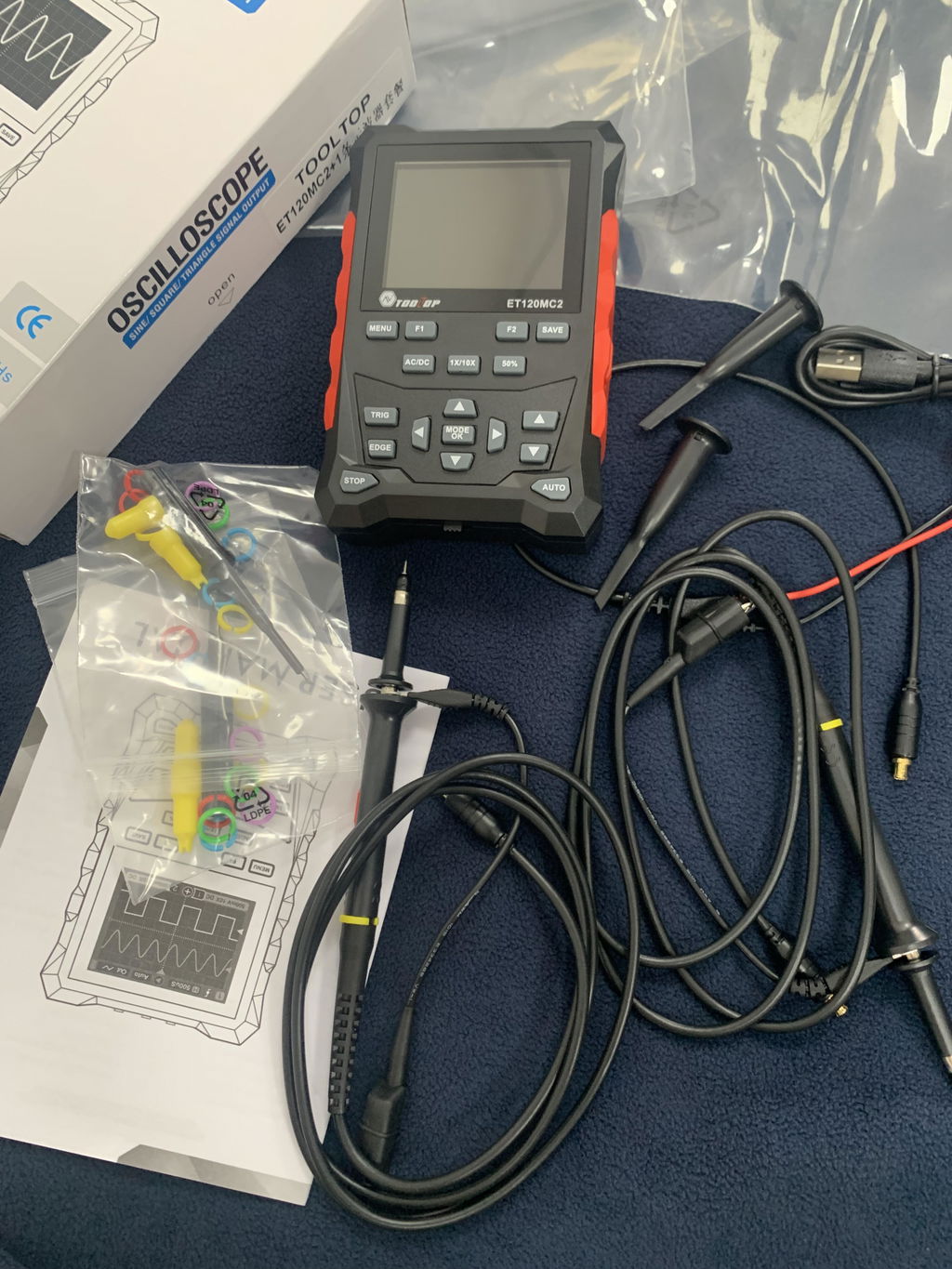

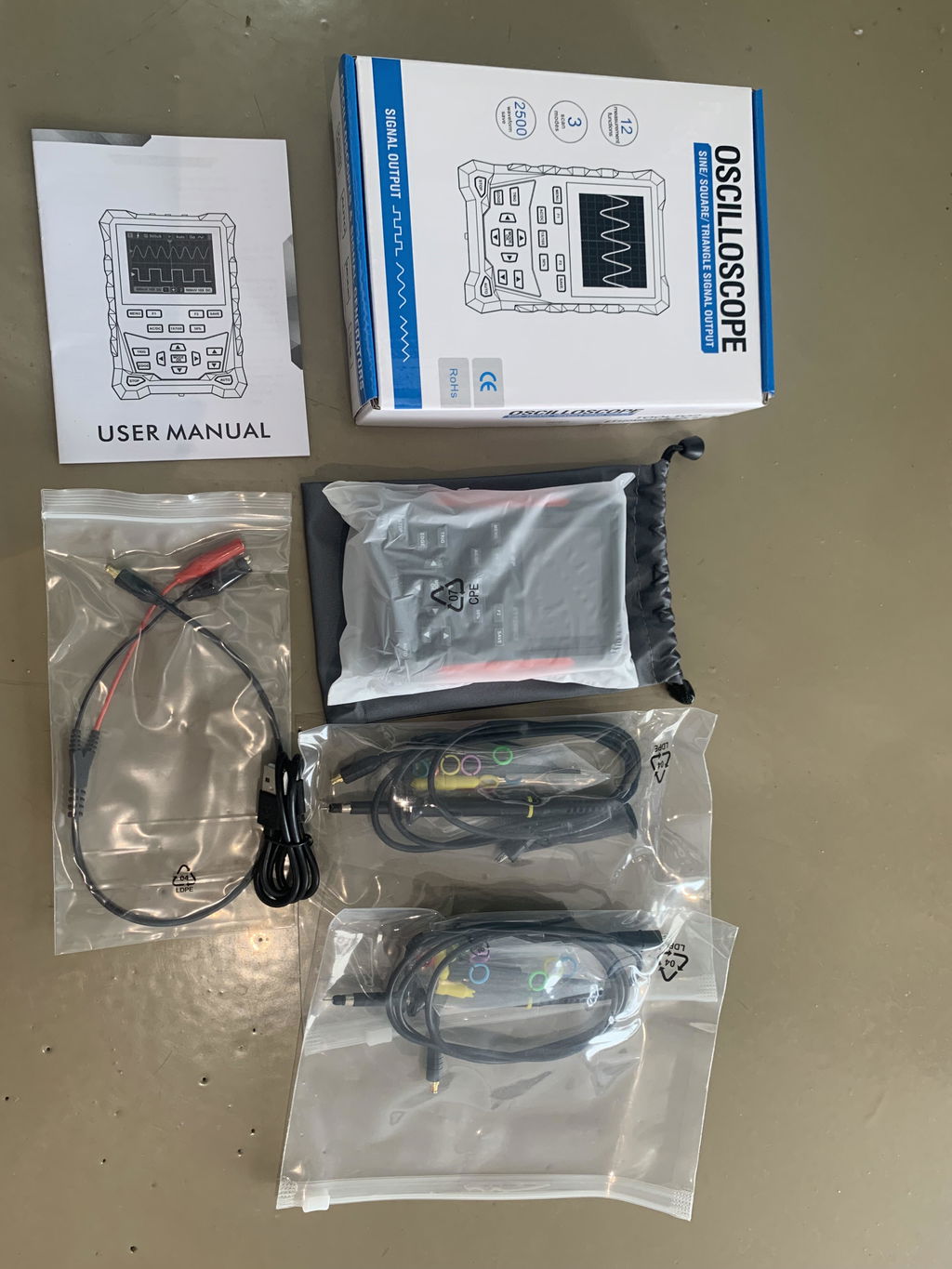

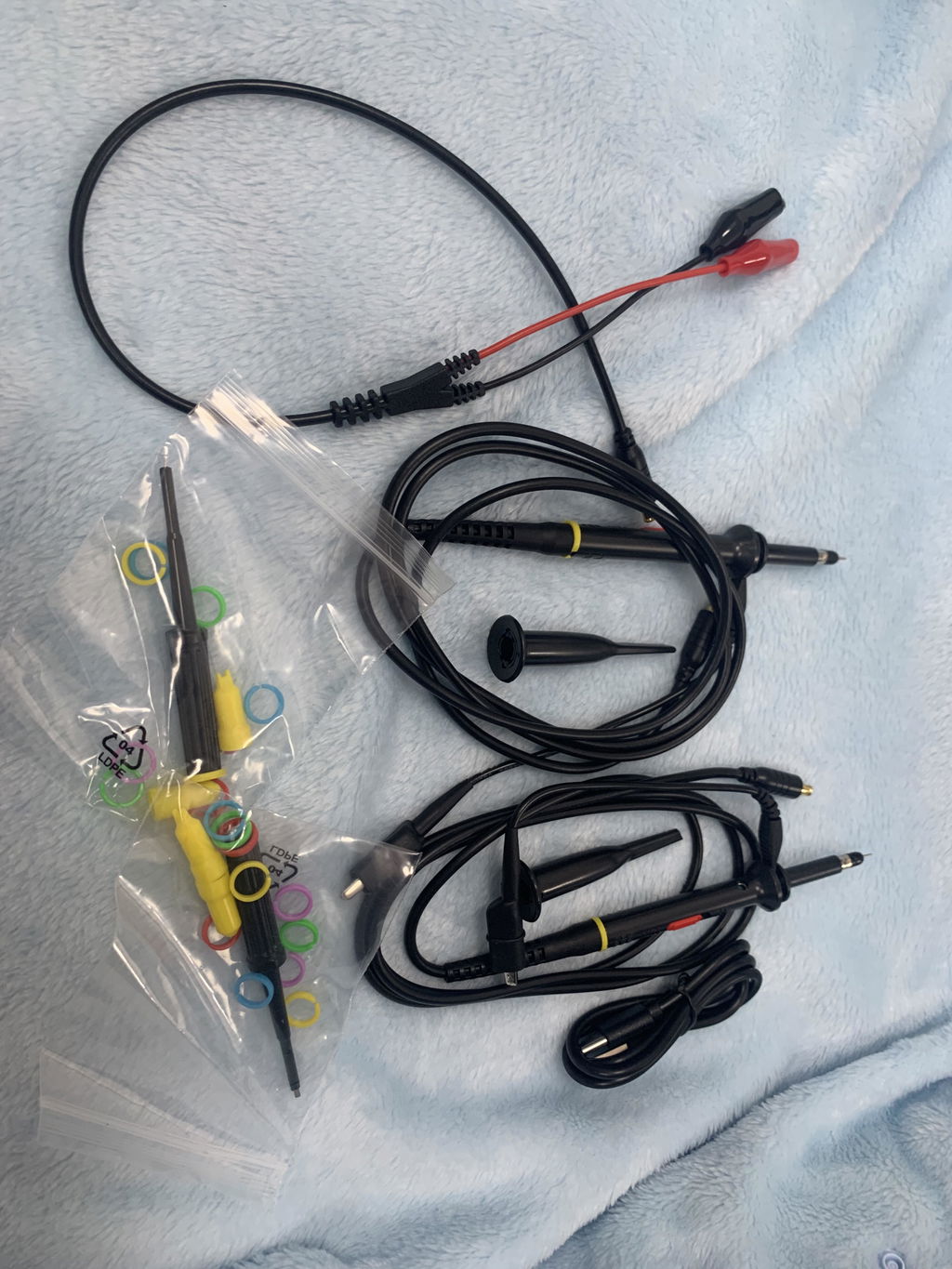

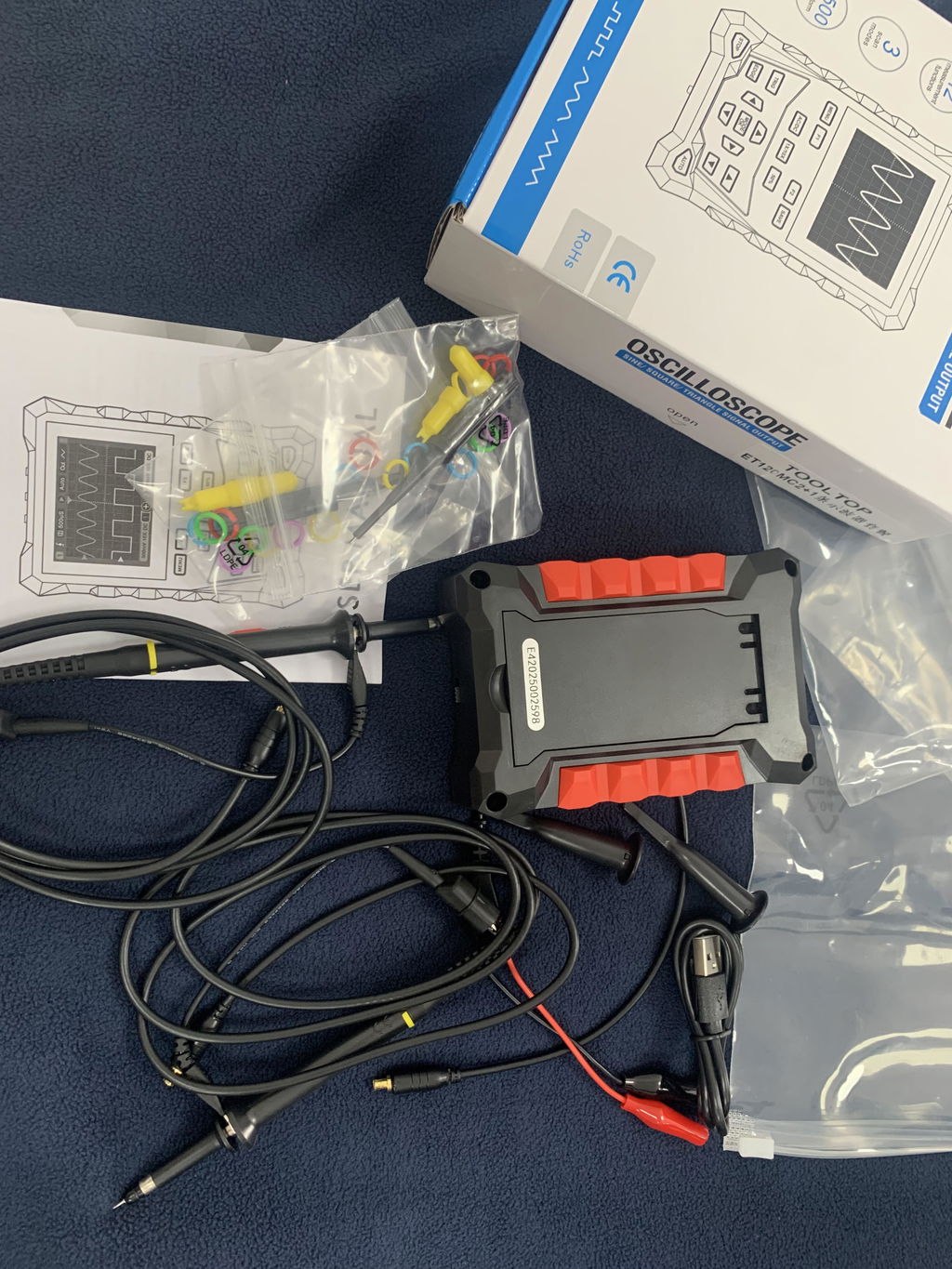

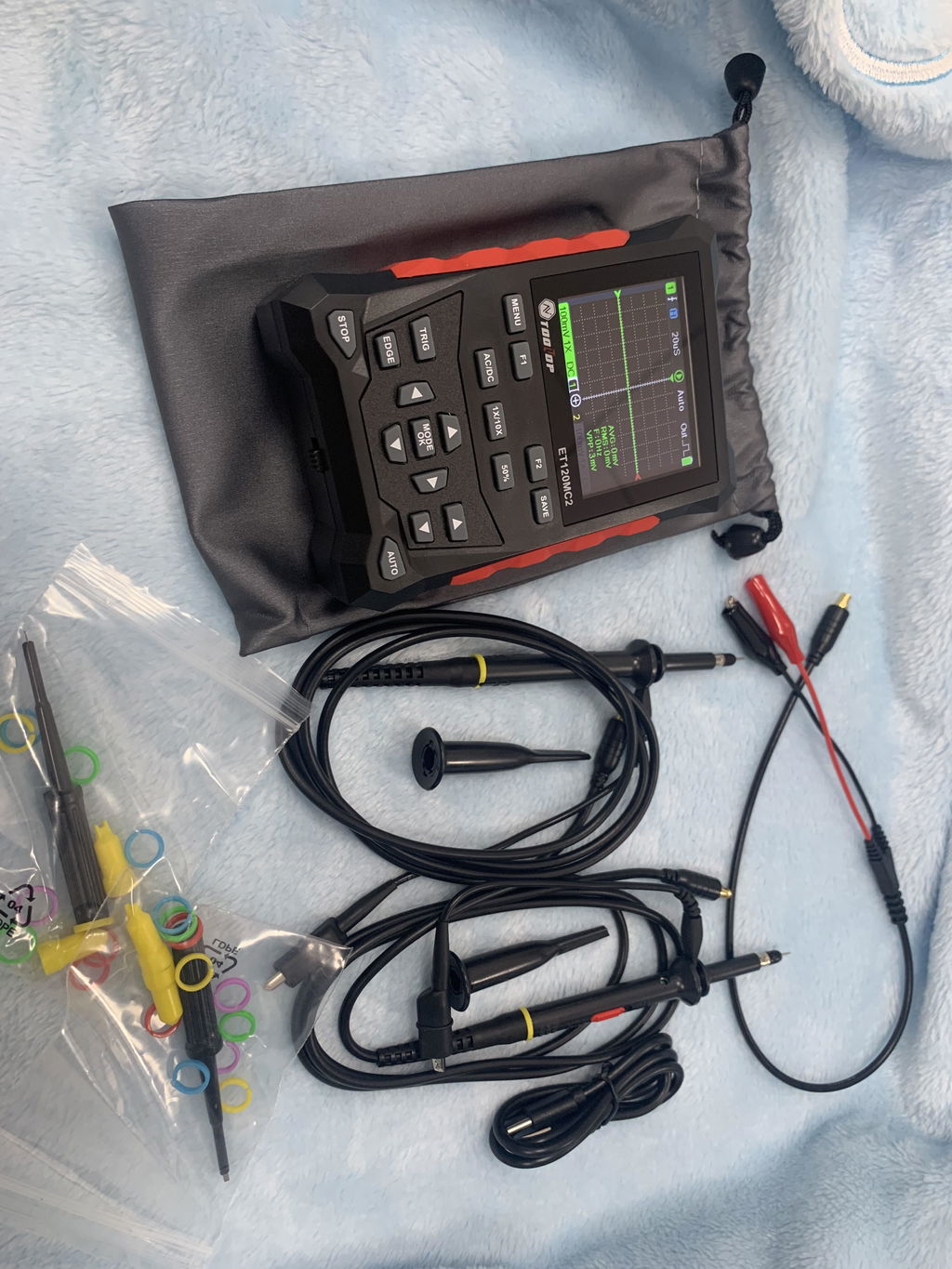

Package list:

ET120MC2

1 x Oscilloscope

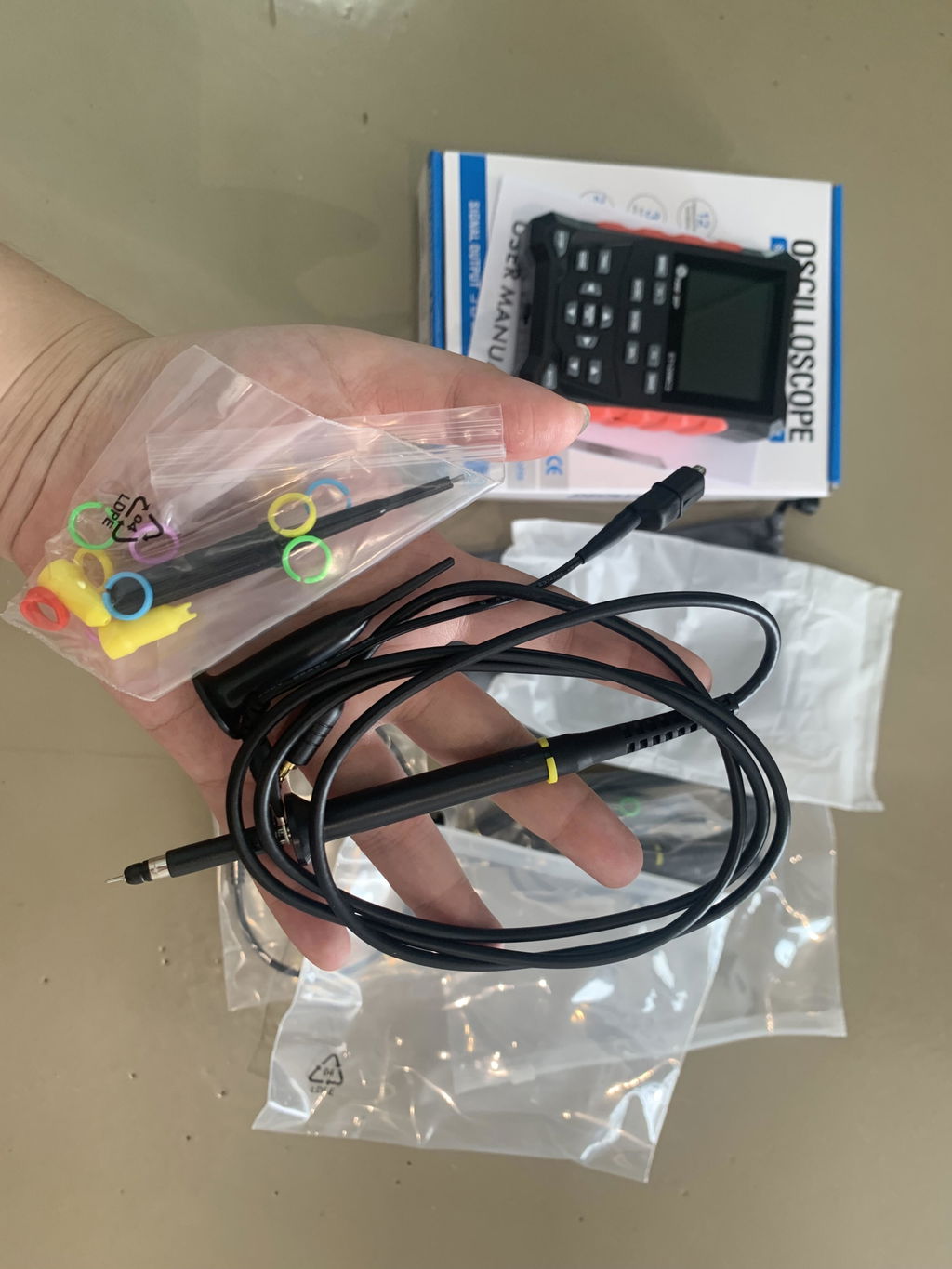

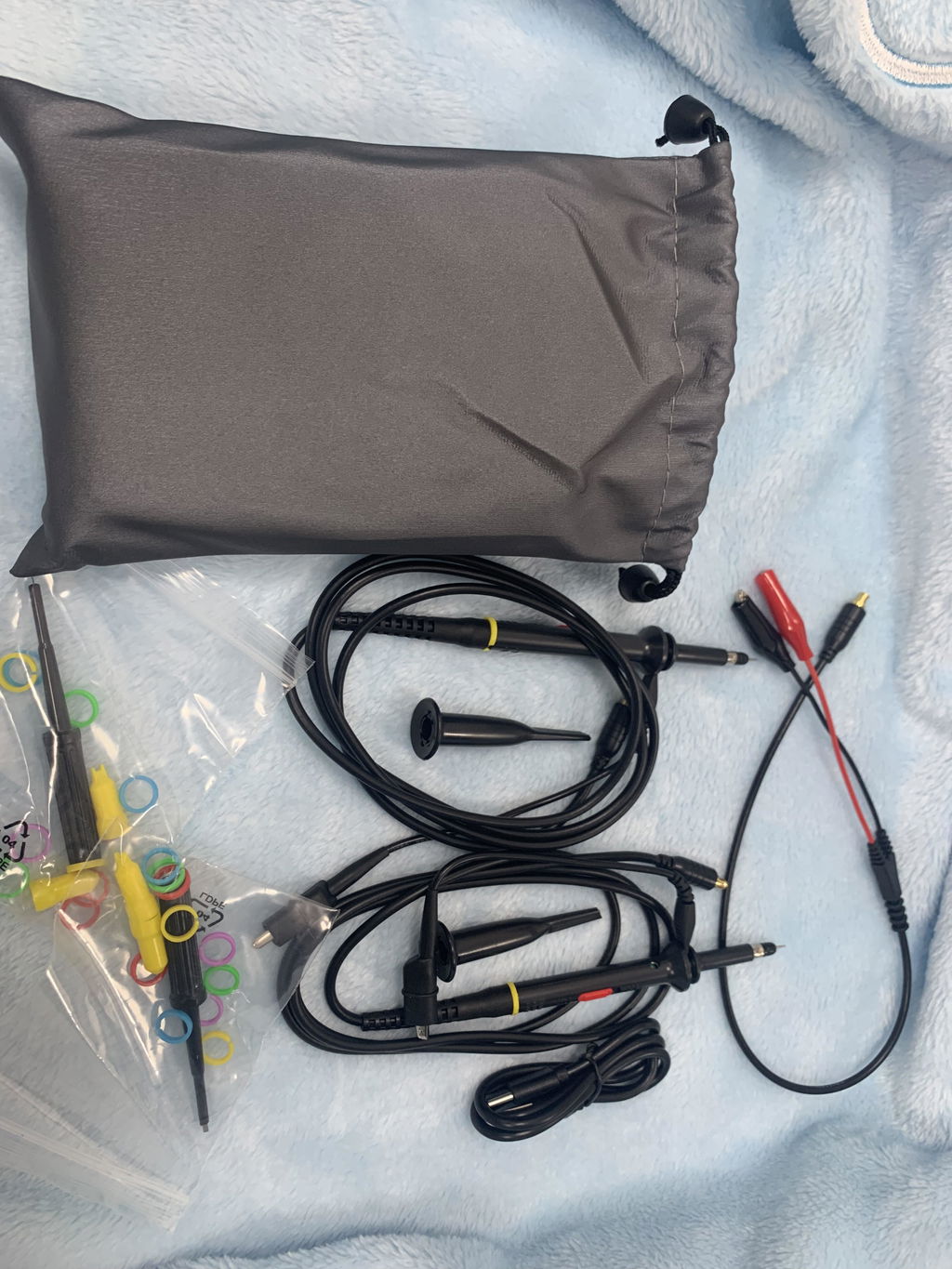

1 x 100MHz Oscilloscope Probe

1 x English Manual

1 X One Pair of Alligator Clip Cables

1 x USB Cable

ET120MC2 PRO

1 x Oscilloscope

2 x 100MHz Oscilloscope Probe

1 x English Manual

1 X One Pair of Alligator Clip Cables

1 x USB Cable
