Features：

- Extraordinarily powerful Rockchip RK3566 CPU, 2.4 & 5 GHz Wifi
- 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
- Internal reliable 64GB On-board Memory, RAM 4G for better performance
- Unique ergonomic design with rubberized outer protection and a rugged internal housing
- Android 11 Operating System for fast boot-up and multitasking
- Extensive vehicle coverage for more than 150+ US, Asian and European vehicle makes
- Bi-Directional Control(Active Test)
- Complete capabilities for codes, live data, electronic control unit (ECU) information, and vehicle control systems, etc
- Data Manager saves customer and vehicle records, scanner data and technician notes for future review
- Read/clear codes for all available systems
- Displays live data in text, graph & analog for easy data review
- Auto VIN technology automatically identifies the vehicle’s make, model and year
- Relearns parking brake pad position after replacement
- Supports IMMO functions
- Supports forced diesel particulate filter regeneration and injector adjustments
- Reset Steering Angle Sensor (SAS)
- Reset service mileage and service intervals
- TPMS Reset
- Supports battery registration and reset
- Support Multi-language
- 1 Year Free Update & Warranty
- MK808BTPRO is the upgrade version of MK808 MK808S and MX808, the MK808BT Pro can do the wireless diagnostics through the BlueTooth VCI, while the MK808 MK808S can't.

Specification:

Brand: AUTEL
CPU: Rockchip RK3566
RAM:4G
ROM:64G
Battery Capacity:5000mAh
Android Version:Android 11
Screen Size:7inch
Wifi:2.4 & 5 GHz
VCI:VCI MINI
Recommended Use ：Indoor
Operating System：Android11
Processor：Cortex-A9 processor (1.5 GHz)
Memory：64GB
Display：7-inch LCD capacitive touchscreen with 1024 x 600 resolution
Connectivity: Mini USB 2.0 / Wi-Fi / HDMMI Type A / Micro SD card (supports up to 32GB)
Sensors：Light sensor for brightness auto changing, Ambient light sensor for brightness auto adjust
Audio input/output：Input: N/A Output: Buzzer Beep
Power and Battery：3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life：Around 4.5 hours of continuous use
Battery Charging Input：5 V/1.5 A, Charges via 5 VDC power supply
Power Consumption：600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp：0 to 55°C(32 to 131°F)
Storage Temp:-20 to 60°C (-4 to 140°F)
Operating Humidity:5% - 95% non-condensing
Dimensions (W x H x D):237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight:788 g (2.42 lb.)
Protocols :ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Diag-H Protocol, TP2.0, TP1.6

CZ Stock - EU Version

Package Include：

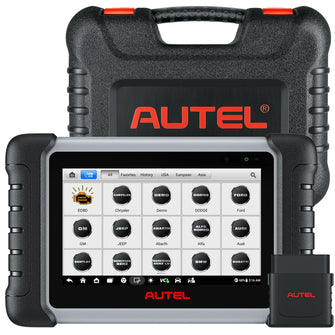

AUTEL MK808BT PRO Tablet *1
USB External Power Adapter_test*1
USB Cable (for charging)*1
USB Cable (for test)*1
MaxiVCI Mini*1
User Manual*1
Quick Reference Guide *1
